Bathroom Exhaust Fan Motor Replacement: A Home Depot Guide
Is your bathroom sounding like a jet engine during takeoff, or has the silence of a broken fan left your mirrors perpetually foggy? Finding the right Bathroom exhaust Fan Motor Replacement home depot can restore peace and air quality to your home without the need for a full renovation. Replacing just the motor is often a cost-effective solution that saves you from ripping out drywall or dealing with complex ductwork.
This guide will walk you through selecting the correct electric motor unit, understanding key specifications, and completing the installation yourself.
Why Choose a Bathroom Exhaust Fan Motor Replacement from Home Depot?
When your ventilation fan fails, the immediate instinct might be to buy an entirely new unit. However, a Bathroom exhaust Fan Motor Replacement home depot offers a streamlined alternative that fits directly into your existing housing canister.
Home Depot stocks a wide variety of options, from universal motor kits to brand-specific parts. By focusing on the motor assembly rather than the entire fan box, you avoid the hassle of resizing ceiling holes or realigning exhaust ducts. This approach is particularly effective for popular brands like Broan-NuTone and Hampton Bay, where parts are designed to be interchangeable.
Identifying Your Existing Fan Model
Before heading to the store, you need to know exactly what you are working with.
- Remove the Grille: Pull down the plastic cover and squeeze the mounting springs to release it.
- Locate the Label: Look inside the housing canister for a manufacturer’s label. You will likely see names like Broan-NuTone or Hampton Bay.
- Note the Specs: Write down the model number, CFM rating (Cubic Feet per Minute), and Sone level (noise rating).
Key Specifications: CFM and Sones
Selecting the right replacement motor requires balancing power and noise.
- CFM Rating (Airflow): This measures how much air the fan moves. A standard bathroom requires 1 CFM per square foot of floor space. If your old motor struggled with bathroom moisture control, consider upgrading to a motor with a higher CFM if your housing allows it.
- Sone Level (Noise): The Sone level indicates how loud the fan is. A rating of 4.0 is fairly loud (like a normal conversation), while 1.0 or less is ultra-quiet. Newer replacement motors often run quieter than the original electric motor unit installed years ago.
Types of Replacement Motors
When shopping at Home Depot, you will generally encounter two types of replacements:
1. OEM Motor Assembly
Original Equipment Manufacturer (OEM) parts are exact matches for your specific model. For example, Broan-NuTone offers “upgrade kits” that include a new motor, a modern grille, and a quieter blower wheel. These are the easiest to install because they are guaranteed to fit the mounting brackets inside your ceiling.
2. Universal Motor Kit
If you have an older or discontinued model, a universal motor kit is a versatile lifesaver. These kits typically include a motor with a modifiable shaft and mounting studs that can be adjusted to fit various brands. They often come with a new blower wheel to ensure smooth operation.
Step-by-Step Installation Guide
Replacing the motor is a straightforward DIY project that usually takes less than an hour.
Tools Needed:
- Screwdriver (Phillips and Flathead)
- Vacuum (for cleaning the housing)
- Work light
- Safety glasses
Step 1: Safety and Removal
Turn off the circuit breaker controlling the bathroom fan. Confirm the power is off by flipping the wall switch. Remove the grille and unplug the plug-in connector that links the motor to the housing receptacle.
Step 2: Remove the Motor Assembly
Most motors are attached to a metal plate that snaps or screws into the housing.
- If there is a screw, remove it.
- Locate the tab on the side of the metal plate and pry it gently to release the assembly.
- Lower the entire motor assembly (plate, motor, and wheel) out of the ceiling.

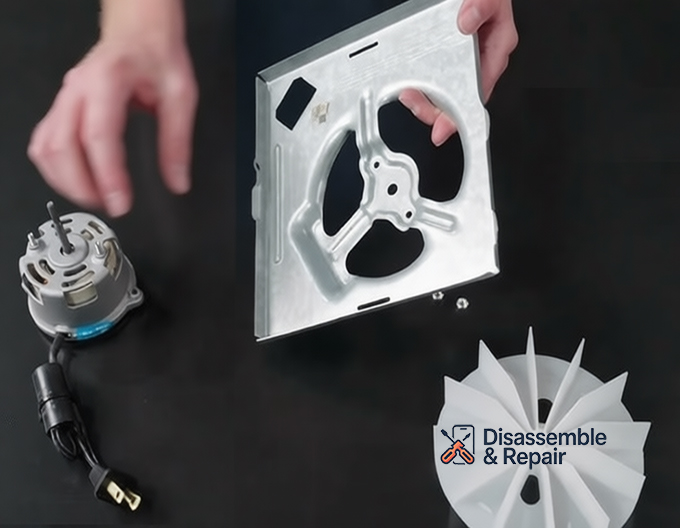

Step 3: Swap the Motor
If you bought a direct replacement kit, you can skip this step. If you bought just the electric motor unit:
- Remove the blower wheel from the old motor shaft. You may need to pull firmly, but be careful not to crack the plastic.
- Unscrew the old motor from the mounting plate.
- Attach the new motor to the plate using the provided hardware.
- Press the blower wheel onto the new motor shaft. Ensure it spins freely without hitting the mounting plate.
Step 4: Reinstall and Test
Insert the renewed assembly back into the housing canister. Make sure the tabs lock into place and secure any screws you removed earlier. Reconnect the plug-in connector to the outlet inside the housing.
Flip the breaker back on and test the fan. It should spin up immediately, effectively pulling air for proper ventilation. Finally, reattach the grille.
Troubleshooting Common Issues
Vibration or Noise:
If the new fan vibrates, the blower wheel might be unbalanced or hitting the side of the housing. Remove the assembly and adjust the wheel’s position on the shaft.
Incompatible Plugs:
Older fans might be hardwired instead of using a standard 2-prong plug. If your new motor has a plug but your housing does not, you may need to cut the plug and use wire nuts to connect the motor leads directly to the house wiring. Note: If you are uncomfortable with electrical wiring, consult a professional.
Hampton Bay Compatibility:
Finding parts for older Hampton Bay models can sometimes be tricky. If a direct replacement isn’t available on the shelf, bring your old motor to the store. A universal motor kit is often the best solution for these specific units.
Conclusion
A noisy or dead fan doesn’t mean you need a total bathroom remodel. By finding the correct Bathroom exhaust Fan Motor Replacement home depot, you can restore efficient bathroom moisture control quickly and affordably. Whether you opt for a high-end Broan-NuTone upgrade or a versatile universal motor kit, a new motor will keep your air fresh and your mirrors clear for years to come.
Frequently Asked Questions
Is it better to replace just the fan motor or the entire unit?
Replacing just the motor is usually the better option because it is more cost-effective and significantly easier to install. By replacing the motor assembly, you avoid the need to cut into drywall, resize ceiling holes, or realign complex exhaust ductwork.
How do I determine which replacement motor I need?
To find the correct part, remove the fan’s plastic grille and look for a manufacturer’s label inside the housing canister. Note the brand name (such as Broan-NuTone or Hampton Bay), the model number, the CFM (airflow) rating, and the Sone (noise) rating before shopping for a replacement.
What is the difference between an OEM motor and a universal motor kit?
An OEM (Original Equipment Manufacturer) motor is an exact match designed by the original brand for a specific model, making it the easiest to install. A universal motor kit is designed for older or discontinued models and features adjustable mounting studs and shafts to fit a variety of different housing canisters.
Can I upgrade my fan’s performance with a new motor?
Yes. When selecting a replacement, you can look for a motor with a higher CFM rating to improve moisture control or a lower Sone rating (1.0 or less) to make the fan quieter. Many modern replacement kits are designed to be more efficient and quieter than the original factory-installed parts.
What should I do if the new motor’s plug doesn’t match my bathroom’s wiring?
While most modern motors use a standard 2-prong plug-in connector, some older fans are hardwired. In these cases, you may need to cut the plug off the new motor and use wire nuts to connect the wires directly to the house wiring. If you are uncomfortable performing electrical work, it is recommended to consult a professional.
