Encountering an Lg Washing Machine Pe Error can be frustrating when your laundry pile is growing, but it is often a solvable issue without professional help. This specific error code serves as a communication from your appliance’s electronic controller, signaling a malfunction within the water level detection system.
When this code appears, the machine effectively stops operating because it cannot safely determine how much water is in the drum. Operating without accurate water level data could lead to flooding or burning out the heating element. This guide will walk you through the technical details, potential causes, and step-by-step solutions to resolve the issue, covering critical components from the pressure sensor to the main control board.

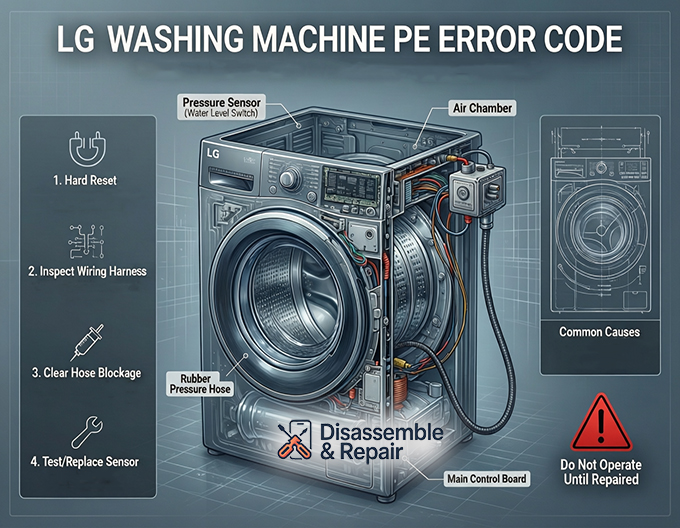

Understanding the PE error code
The PE error stands for “Pressure Sensor Error.” Unlike mechanical switches in older washers, modern LG machines use a sophisticated monitoring system involving a pressure switch assembly and an air chamber.
How the water level system works
To understand the failure, you must understand the normal operation. As water fills the tub, it enters an air chamber located at the bottom of the machine. As the water level rises, it compresses the air inside this chamber and forces it up through a small tube to the pressure sensor.
Modern LG sensors operate on sensor frequency. The pressure sensor contains a diaphragm that moves with air pressure, changing the frequency of an electrical signal sent to the main control board. The board translates this frequency into a specific water level. If the electronic controller receives a frequency that is out of range, or if it receives no signal at all, it triggers the Lg Washing Machine Pe Error to prevent damage.
Common causes of the PE error
While a faulty sensor is the most obvious culprit, several other entities can trigger this alarm. Diagnosing the exact root cause prevents unnecessary spending on parts that may not be broken.
1. Wiring harness issues
The wiring harness connects the pressure sensor to the main control board. Because washing machines vibrate significantly during spin cycles, these wires can sometimes chafe, disconnect, or corrode. A simple loose connection can interrupt the frequency signal, causing the computer to think the sensor has failed.
Read more LG washing machine dE2 error
2. Pressure sensor failure
The pressure sensor (also frequently referred to as the water level switch) is an electronic component that can degrade over time. Internal corrosion or a “stuck” diaphragm can cause it to send incorrect data. If the sensor cannot read the air pressure changes accurately, the machine defaults to the error mode.
3. Hose blockage
The thin rubber tube connecting the air chamber to the sensor is vital. If this hose becomes clogged with detergent residue, mold, or trapped water (creating a “water lock”), the air pressure cannot reach the sensor. A hose blockage is one of the most common, yet overlooked, causes of this error.
4. Main control board malfunction
In rare cases, the main control board itself may be at fault. If the board’s interpretation logic fails or if the circuit receiving the sensor’s frequency signal is damaged, it will display the PE error even if the sensor and wiring are perfectly functional.
LG washing machine PE error Troubleshooting steps
Before attempting any repairs, ensure safety by unplugging the machine from the power outlet. You will likely need a screwdriver (Phillips head) and potentially a multimeter for advanced diagnosis.
Step 1: Performing a hard reset
Sometimes, the electronic controller experiences a temporary glitch.
- Unplug the washer from the wall.
- Press and hold the “Start/Pause” button for 5 seconds to dissipate residual static electricity.
- Wait for at least 5 to 10 minutes.
- Plug the machine back in and run a short cycle.
If the error clears and does not return, it was likely a temporary software glitch. If it returns, proceed to physical inspection.
Step 2: Inspecting the wiring harness
You will need to access the internal components.
- For an LG top load washer: The sensor is usually located behind the control console. You will need to unscrew the back panel of the console to access it.
- For an LG front load washer: The sensor is typically located under the top panel. Remove the screws at the rear of the machine that hold the top lid in place, then slide the lid back and lift it off.
Once the top is removed, locate the pressure switch assembly. It is usually a round, plastic component with a small rubber hose attached to the bottom and a wire connector on top.
- Check the wire connector. Is it loose? Unplug it and reconnect it firmly.
- Inspect the wires for any signs of wear, burns, or corrosion (green/white buildup).
- Follow the wires back toward the main control board as far as you can to ensure there are no pinches or cuts.
Step 3: Checking for hose blockages
This step fixes a surprising number of PE errors without costing a dime.
- Locate the black or clear tube attached to the bottom of the pressure sensor.
- Remove the clamp and pull the hose off the sensor.
- Visually inspect the end of the hose. Blow through the hose toward the tub. You should hear a bubbling sound as air escapes into the water in the drum.
- If you cannot blow through it, or if it feels restricted, you have a hose blockage. You may need to trace the hose down to the air chamber on the side of the tub and clean it out thoroughly with hot water and vinegar to remove detergent buildup.
- Check the hose for cracks or pinholes. Even a tiny air leak will prevent the pressure from building, confusing the water level switch.
Step 4: Testing and replacing the pressure sensor
If the wiring is good and the hose is clear, the pressure sensor is the likely failure point.
Using a Multimeter (Optional):
If you have a multimeter, you can check the sensor frequency or resistance, though frequency testing requires an oscilloscope or a specialized meter with a Hz setting. A simpler test is checking for continuity across the terminals. If the circuit is open (infinite resistance) between the relevant pins (consult your specific model’s tech sheet), the sensor is dead.
Read more LG washing machine E4 error
Replacement:
- Disconnect the wire harness from the sensor.
- Disconnect the pressure hose.
- Unclip or unscrew the sensor from the machine housing.
- Install the new pressure switch assembly.
- Reconnect the hose and wiring.
- Reassemble the machine and run a test cycle.
Specifics for LG front load washer vs. LG top load washer
While the error code is universal, the physical repair process differs slightly due to the machine’s architecture.
LG front load washer
On front loaders, the pressure sensor is almost always mounted on the right-hand side (when facing the machine) near the top frame.
- Access: Remove the top panel (usually two screws at the back).
- Vibration Issues: Front loaders spin at very high speeds (often 1000+ RPM). This creates significant vibration. Pay extra attention to the wiring harness in these models, as it is more prone to rubbing against the metal casing, which can strip the insulation and cause a short circuit.
LG top load washer
On top loaders, the sensor is often housed inside the control panel console at the back.
- Access: You may need to insert a putty knife under the front of the console to pop spring clips or remove screws from the rear panel.
- Tub Movement: In top loaders, the tub moves vertically and horizontally. Ensure the pressure hose has enough slack and isn’t being pulled tight during the agitation cycle, which could cause the Lg Washing Machine Pe Error to appear intermittently during heavy loads.
Advanced troubleshooting: The main control board
If you have replaced the sensor, checked the wiring, and cleared the hose, yet the error persists, the issue may lie with the main control board.
The board supplies a low voltage (typically 5V DC) to the sensor and reads the returning frequency. If the board’s internal voltage regulator fails, it cannot power the sensor.
- Inspect the board visually for “blown” capacitors (bulging tops) or burn marks.
- Check the connectors on the board where the pressure sensor harness plugs in. Corrosion here is common in high-humidity environments.
- Replacing the board is expensive and requires programming on some models. Ensure you have ruled out the pressure switch assembly and wiring absolutely before ordering a new board.
Preventative maintenance
To prevent the Lg Washing Machine Pe Error from returning, consider these maintenance tips:
- Use HE Detergent: Excess suds are a primary cause of air chamber blockages. High-efficiency machines require low-sudsing detergent. Using too much standard soap creates a foam that enters the pressure hose and dries into a cement-like blockage.
- Clean the Washer: Run a “Tub Clean” cycle once a month using a dedicated washing machine cleaner or vinegar. This keeps the air chamber and drain lines clear of sludge.
- Check Balance: Ensure your machine is perfectly level. Excessive vibration damages the wiring harness and loosens connections over time.
Conclusion
The Lg Washing Machine Pe Error is a protective mechanism designed to stop your washer from overfilling or running dry. While it halts your laundry day, it is usually a repairable issue. By systematically checking the hose blockage, inspecting the wiring harness, and testing the pressure sensor, you can isolate the problem.
Whether you own an LG front load washer or an LG top load washer, the underlying technology of the water level switch and sensor frequency remains the same. Most homeowners find that simply cleaning the air hose or reconnecting a loose wire resolves the issue. However, if a replacement is needed, swapping out the pressure switch assembly is a cost-effective DIY repair that extends the life of your appliance. Always remember to disconnect power before working on your machine and consult a professional if the diagnosis points toward the main control board or if you are uncomfortable handling electronic components.
Frequently asked questions
What does the PE error code specifically mean?
The PE error stands for “Pressure Sensor Error.” This code appears when the washing machine’s electronic controller is unable to detect a valid signal from the pressure sensor (water level switch). Because the machine cannot accurately determine how much water is in the drum, it stops operating to prevent potential flooding or damage to the heating element.
Can I fix the PE error without buying new parts?
Yes, in many cases. The error is frequently caused by a temporary software glitch, a loose wire, or a blockage in the pressure hose. You can often resolve the issue by performing a hard reset (unplugging the machine and holding the Start/Pause button) or by cleaning out the small rubber tube that connects the pressure sensor to the air chamber, which can become clogged with detergent residue.
How do I know if the pressure sensor itself has failed?
If you have performed a hard reset, confirmed the wiring harness is securely connected, and ensured the pressure hose is clear of blockages and leaks, but the error remains, the sensor is likely faulty. You can test it for continuity using a multimeter; if the circuit is open or the internal diaphragm is stuck, the pressure switch assembly will need to be replaced.
Read more LG washing machine PS error
Does the location of the pressure sensor change based on my washer model?
Yes, the physical location varies between machine types. On an LG front load washer, the sensor is typically found under the top panel on the right side. On an LG top load washer, you will usually find the sensor housed inside the control console at the back of the machine. Despite the different locations, the sensor functions the same way in both designs.
How can I prevent the PE error from happening again in the future?
The best way to prevent this error is through regular maintenance. Use only High-Efficiency (HE) detergent to prevent excess suds from clogging the air chamber, and run a monthly “Tub Clean” cycle to remove sludge and mineral buildup. Additionally, ensure the machine is level to minimize vibrations that can loosen the wiring harness over time.
